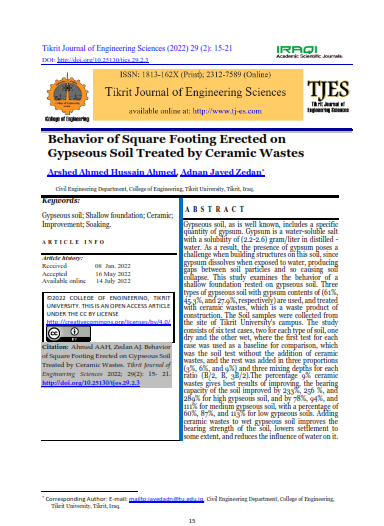

Behavior of Square Footing Erected on Gypseous Soil Treated by Ceramic Wastes
Article Sidebar
Main Article Content
Abstract
Gypseous soil, as is well known, includes a specific quantity of gypsum. Gypsum is a water-soluble salt with a solubility of (2.2-2.6) gram/liter in distilled - water. As a result, the presence of gypsum poses a challenge when building structures on this soil, since gypsum dissolves when exposed to water, producing gaps between soil particles and so causing soil collapse. This study examines the behavior of a shallow foundation rested on gypseous soil. Three types of gypseous soil with gypsum contents of (61%, 45.3%, and 27.9%, respectively) are used, and treated with ceramic wastes, which is a waste product of construction. The Soil samples were collected from the site of Tikrit University's campus. The study consists of six test cases, two for each type of soil, one dry and the other wet, where the first test for each case was used as a baseline for comparison, which was the soil test without the addition of ceramic wastes, and the rest was added in three proportions (3%, 6%, and 9%) and three mixing depths for each ratio (B/2, B, 3B/2).The percentage 9% ceramic wastes gives best results of improving, the bearing capacity of the soil improved by 233%, 256 %, and 289% for high gypseous soil, and by 78%, 94%, and 111% for medium gypseous soil, with a percentage of 60%, 87%, and 113% for low gypseous soils. Adding ceramic wastes to wet gypseous soil improves the bearing strength of the soil, lowers settlement to some extent, and reduces the influence of water on it.
Metrics
Article Details
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
Plaudit
References
REFERENCES
World soil resources: An Explanation of the FAO World Soil Resource Map at a Scale of 1:25000000. FAO World Soil Resource Report 66. Rome, Italy,1993.
Al-Kaabi F. Distribution of the Gypsiferous Soil in Iraq. State Company of Geological Survey and Mining, Report No.3044. Baghdad, Iraq, 2007.
Lambe TW, Marr WA. Stress path method. Journal of the geotechnical engineering division, 1979; 105(6), 727-738. DOI: https://doi.org/10.1061/AJGEB6.0000821
Murthy VN. Advanced Foundation Engineering. New Delhi, India: CBS Publisher and Distributor, 2007;1.
Das BM. Shallow Foundations, Bearing Capacity and Settlement. Taylor & Francis Group, 2009;2. DOI: https://doi.org/10.1201/9781420070101
Razouki SS, Al-Omari RR, Nashat IH, Razouki HF, Khalid S. The problem of gypsiferous soils in Iraq. In Proceeding of the symposium on gypsiferous soils and their effect on structures, NCCL 1994; _: 7-33).
Zedan AJ, Abbas HH. Experimental Investigation of Square Footing Resting on Sand over Gypseous Soils. Tikrit Journal of Engineering Sciences, 2020; 27(1): 30-39. DOI: https://doi.org/10.25130/tjes.27.1.05
Shrestha A, Mahmood A. Review of deep learning algorithms and architectures. IEEE access, 2019; 7: 53040-53065. DOI: https://doi.org/10.1109/ACCESS.2019.2912200
Muhauwiss FM. Physical properties of gypseous soil after gypsum removal using EDTA solution. Tikrit Journal of Engineering Sciences, 2018; 25(2): 68-73. DOI: https://doi.org/10.25130/tjes.25.2.09
Saleh SM. Stress Transfer and Distribution in Reinforcement under Footings on Reinforced Earth. MSc. Thesis, University of Mosul, Iraq, 1989.
Adams, RD, Adams RD, Comyn J, Wake WC, Structural adhesive joints in engineering. Springer Science & Business Media, 1997.
Tawfeeq SS. Improvement of Gypseous Soils Using Different Types of Geosynthetic Materials. MSc. Thesis, Civil Engineering Dept., Tikrit University, Iraq, 2009.
Al-Azzawi MAH. Behavior of Rectangular Footing Subjected to Gypseous Soil under Eccentricity-Inclined Load. MSc. Thesis, Civil Engineering Dept., Tikrit University, Iraq, 2010.
Al-Obaidi AH, Fattah MY, Al-Dorry, MK. Variation of suction during wetting of unsaturated collapsible gypseous soils. International Journal of Engineering & Technology, 2018; 7(4.37): 79-85. DOI: https://doi.org/10.14419/ijet.v7i4.37.23621
Al-Mufty AA, Nashat IH. Gypsum Content Determination in Gypseous Soils and Rocks. 3rd International Jordanian Conference on Mining, 2000; _: 500-506.
Soil and Rock, West Conshohocken, United States. ASTM (American Society for Testing Materials), 2010; 04(08) and 04(09).
Lutenegger AJ, Adams MT. Bearing Capacity of Footings on Compacted Sand. Proceedings of the 4th International Conference on Case Histories in Geotechnical Engineering, 1998; _:1216- 1224.
