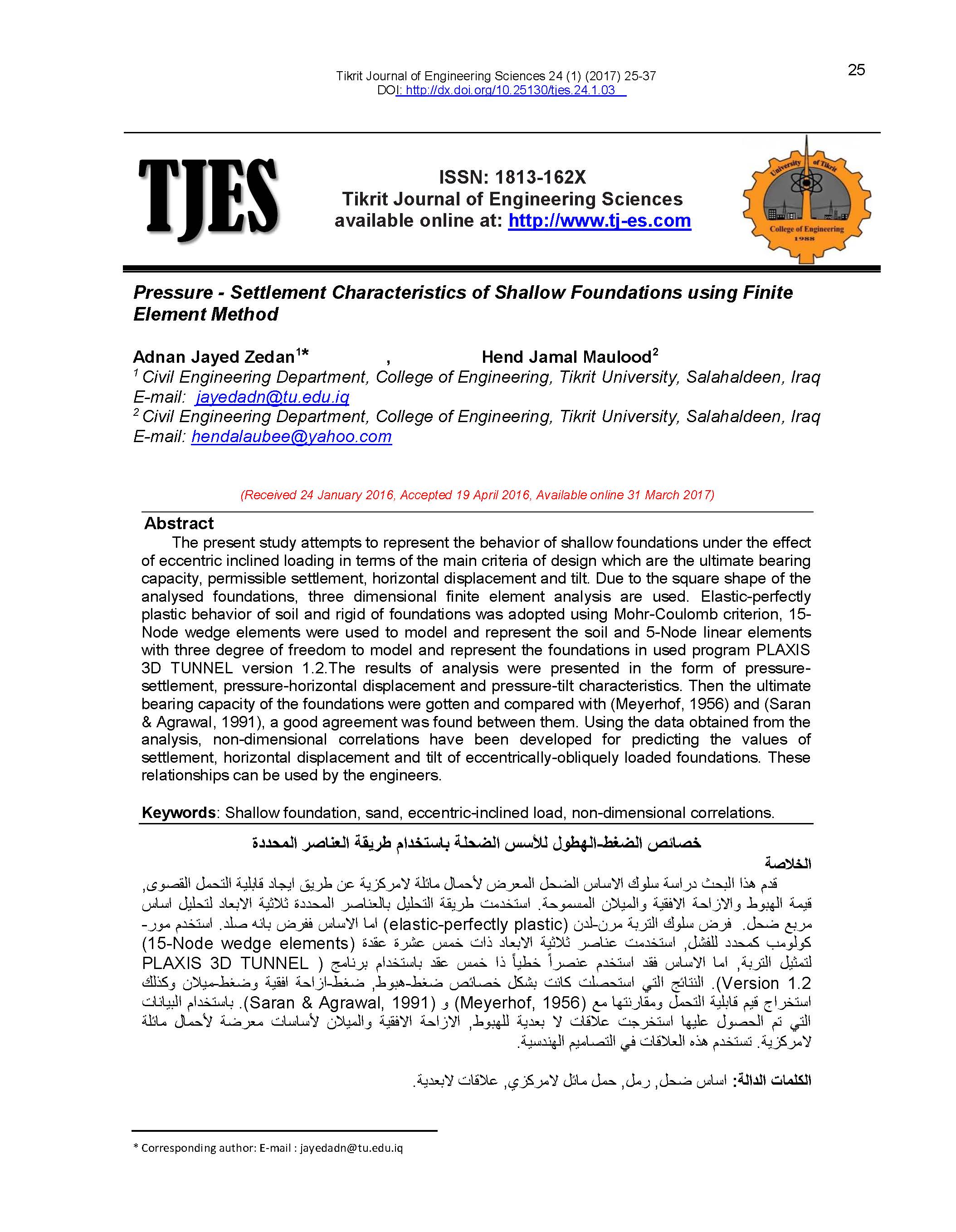

Pressure - Settlement Characteristics of Shallow Foundations using Finite Element Method
Article Sidebar
Main Article Content
Abstract
The present study attempts to represent the behavior of shallow foundations under the effect of eccentric inclined loading in terms of the main criteria of design which are the ultimate bearing capacity, permissible settlement, horizontal displacement and tilt. Due to the square shape of the analysed foundations, three dimensional finite element analysis are used. Elastic-perfectly plastic behavior of soil and rigid of foundations was adopted using Mohr-Coulomb criterion, 15-Node wedge elements were used to model and represent the soil and 5-Node linear elements with three degree of freedom to model and represent the foundations in used program PLAXIS 3D TUNNEL version 1.2.The results of analysis were presented in the form of pressure-settlement, pressure-horizontal displacement and pressure-tilt characteristics. Then the ultimate bearing capacity of the foundations were gotten and compared with (Meyerhof, 1956) and (Saran & Agrawal, 1991), a good agreement was found between them. Using the data obtained from the analysis, non-dimensional correlations have been developed for predicting the values of settlement, horizontal displacement and tilt of eccentrically-obliquely loaded foundations. These relationships can be used by the engineers.
Article Details
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
References
Ameen AN. Three dimensional analysis of rectangular shallow foundations subjected to eccentric-inclined loads. M.Sc. Thesis. Tikrit University, Tikrit, Iraq; 2008.
Meyerhof GG. The bearing capacity of foundations under eccentric–inclined loads. 3rd International Conference on Soil Mechanics and Foundation Engineering 1953; Zurich, Switzerland: p. 440-445.
Meyerhof GG. Penetration tests and bearing of cohesionless soil. Journal Smfe Div., ASCE 1956;82(1). DOI: https://doi.org/10.1061/JSFEAQ.0000001
Vesic AS. Analysis of ultimate loads of shallow foundations. Journal. of Soil Mechanics and Foundation Engineering Division, ASCE 1973;99(1):47-53. DOI: https://doi.org/10.1061/JSFEAQ.0001846
Agrawal RK. Behavior of shallow foundations subjected to eccentric-inclined loads. Ph.D. Thesis. Roorkee, India; University of Roorkee;1986.
Nova R, Montrasio L. Settlement of shallow foundations on sand. Geotechnique 1991;4(2):243–256. DOI: https://doi.org/10.1680/geot.1991.41.2.243
Ngo-Tran CL. The analysis of off-shore foundations subjected to combined loading. Ph.D. Thesis. UK: University of Oxford;1996.
AL-Samadi MM. Behavior of ring foundation on reinforced soil. Ph.D. Thesis. Roorkee, India: University of Roorkee:1998.
Bouzid DJ, Vermeer PA, Tiliouine B. Finite element vertical slices model: validation and application to an embedded square footing under combined loading. Computers and Geotechnics 2005;32:72-91. DOI: https://doi.org/10.1016/j.compgeo.2005.01.001
Saleh, N. M., AL-Saied, A. E. and Elleboudy, A. M., "Performance of Skirted Strip Footing Subjected to Eccentric Inclined Load", EJGE, Vol.13, Bund F, 2008.
AL-Azzawi MA. behavior of rectangular footing subjected to gypseous soil under eccentric-inclined load. M.Sc. Thesis. Tikrit, Iraq: Tikrit university;2010.
Bowles JE. Foundation analysis and design. 4th ed. Singapore: McGraw–Hill;1988.
Bowles JE. Foundation analysis and design. 5th ed. USA: McGraw–Hill;1996.
Saran S, Agrawal RK. Bearing capacity of eccentrically obliquely loaded footing. Journal of Geotechnique Engineering ASCE 1991;117(GT11):1669–1690. DOI: https://doi.org/10.1061/(ASCE)0733-9410(1991)117:11(1669)
Saran S, Niyogi BPG. A model study of footings subjected to eccentric inclined load in case of cohesionless soil. Symp. On Shallow Foundations 1970; Bombay, India.
