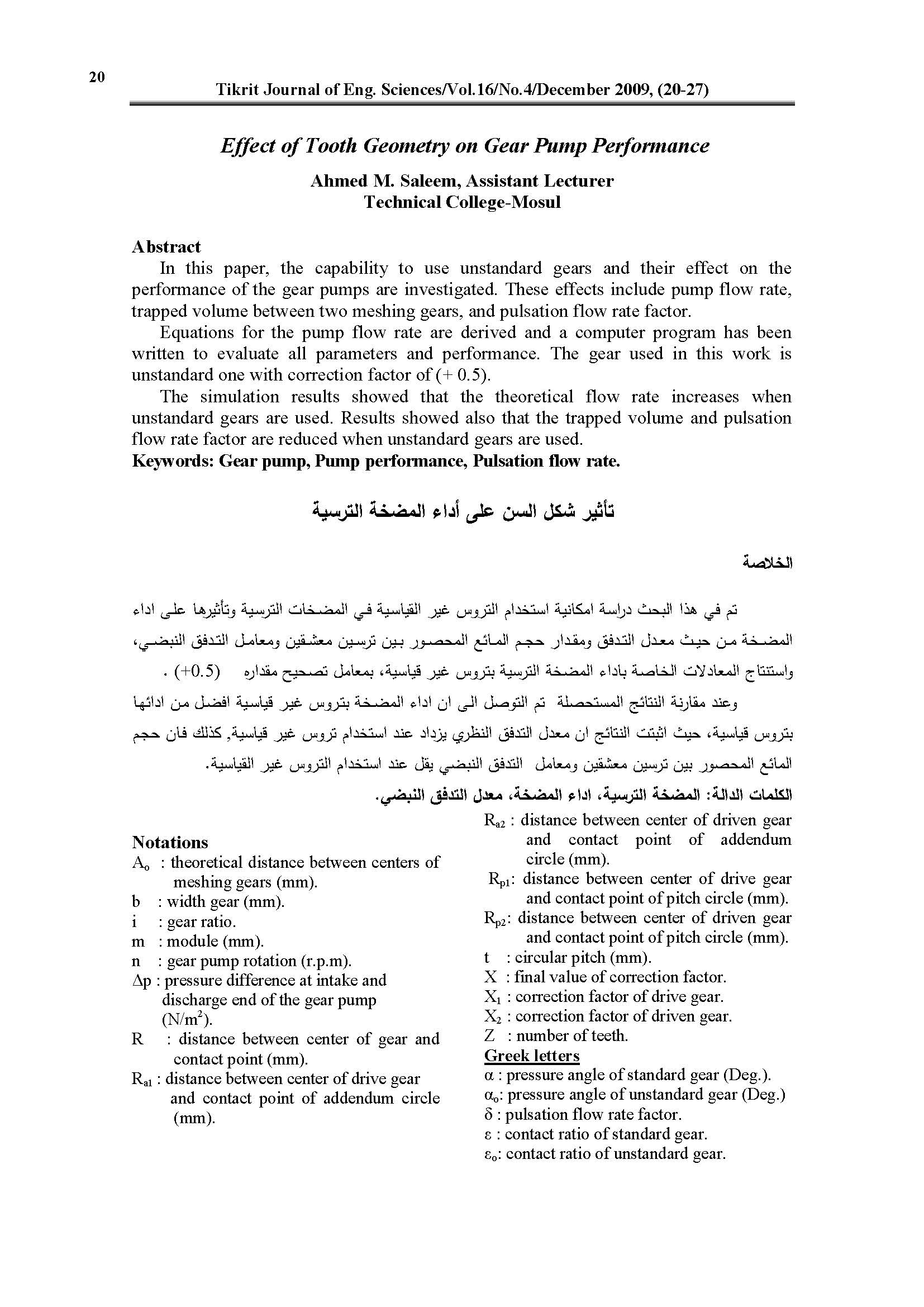

Effect of Tooth Geometry on Gear Pump Performance

Main Article Content

Ahmed M. Saleem

Abstract

In this paper, the capability to use unstandard gears and their effect on the performance of the gear pumps are investigated. These effects include pump flow rate, trapped volume between two meshing gears, and pulsation flow rate factor. Equations for the pump flow rate are derived and a computer program has been written to evaluate all parameters and performance. The gear used in this work is unstandard one with correction factor of (+ 0.5). The simulation results showed that the theoretical flow rate increases when unstandard gears are used. Results showed also that the trapped volume and pulsation flow rate factor are reduced when unstandard gears are used.

Metrics

Metrics Loading ...

Article Details

Section
Articles

Plaudit

References

Gerald S., James P., and Ralph A., “The Application of Graphics Engineering to Gear Design”. SAE, paper No. 861347, 1987.

Paul A.K., Mukherjee B. C., and Bhattacharyya A., “Analysis of Gear Pump”. Institutions of Engineer (India), Vol. 52, no. 9, Part MES, pp. 311-35, 1972.

Ichikawa T., Yamaguchi, and Willekens, “On Pulsation of Delivery Pressure of Gear Pump”, Bull. JSME, Vol. 14, No. 78, pp. 1304-1312, 1971. DOI: https://doi.org/10.1299/jsme1958.14.1304

Yanda H. A., “A study of The Trapping of Fluid in a Gear Pump”, Proc. Inst. Mech. E., Vol. 201, No. A1, 1987. DOI: https://doi.org/10.1243/PIME_PROC_1987_201_005_02

Ali K. H., “The Design and Performance of Gear Pumps With particular Reference to Marginal Suction Condition”. Ph. D. Thesis Cranfield Institute of technology, UK., 1989.

Marius G., “Journal Bearing Performance in Gear Pump”. Ph.D. thesis. Technical University of Catalonia, Spain, 2000.

Noah D. Maring and Suresh B. Kasaragadda, “The Theoretical Flow Ripple of an External Gear Pump”. Transaction of ASME, Vol. 125, pp. 396 – 404, 2003. DOI: https://doi.org/10.1115/1.1592193

Ngamura K., Ikejo K., and Tututan F. G.,”Design and performance of gear pumps with a non – involute tooth profile”. Journal of Engineering Manufacture, Vol. 218, Number 7, pp. 699 – 711, 2004. DOI: https://doi.org/10.1177/095440540421800703

Hyun Kim, Hazel Marie, and Suresh Patil, “Two – Dimensional CFD Analysis of a Hydraulic Gear Pump”, American Society of Engineering Education, 2007.

Yudin, “Gear Pump Principle Parameters and Their Calculation”, Translation of Russian book by Harreis E., 1967.

Miatra, G. M., “Handbook of Gear Design”, MC Graw-Hill Company, 1985.

Mitome K. and Seki K., “A new Continuous Contact Low – Noise Gear Pump”, Transaction of the ASME, Vol. 105, pp. 736 – 741, 1983. DOI: https://doi.org/10.1115/1.3258544

Eiichi Kojima and Masaaki Shinada, “Characteristics of Fluid Borne Noise Generated by Fluid Power Pump”, Bulletin of JSME, Vol. 27, No. 232, pp. 16 – 232, 1984. DOI: https://doi.org/10.1299/jsme1958.27.2188
