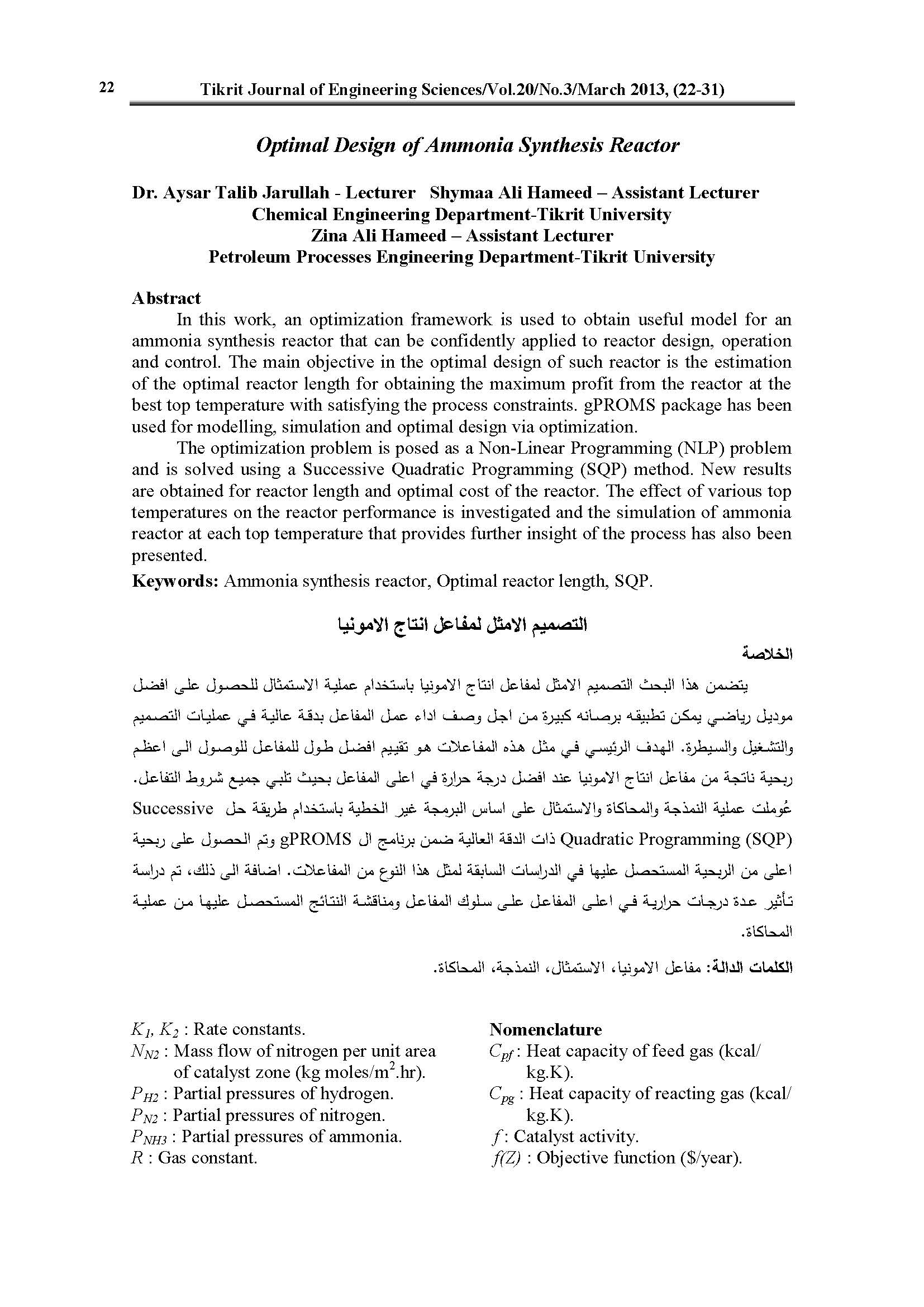

Optimal Design of Ammonia Synthesis Reactor
Article Sidebar
Main Article Content
Abstract
In this work, an optimization framework is used to obtain useful model for an ammonia synthesis reactor that can be confidently applied to reactor design, operation and control. The main objective in the optimal design of such reactor is the estimation of the optimal reactor length for obtaining the maximum profit from the reactor at the best top temperature with satisfying the process constraints. gPROMS package has been used for modelling, simulation and optimal design via optimization. The optimization problem is posed as a Non-Linear Programming (NLP) problem and is solved using a Successive Quadratic Programming (SQP) method. New results are obtained for reactor length and optimal cost of the reactor. The effect of various top temperatures on the reactor performance is investigated and the simulation of ammonia reactor at each top temperature that provides further insight of the process has also been presented.
Metrics
Article Details
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
Plaudit
References
Murase, A. Roberts, H. L. and Converse, A. O. “Optimal thermaldesign of an auto-thermal ammoniasynthesis reactor”, Industrial andEngineering Chemistry Process Design Development, Vol. 9, No. 4, pp. 503-513, 1970. DOI: https://doi.org/10.1021/i260036a003
Babu, B. V. and Angira, R.“Optimal design of an auto-thermal ammonia synthesis reactor”, Computers and chemical engineering, Vol. 29, No. 5, pp. 1041-1045, 2005. DOI: https://doi.org/10.1016/j.compchemeng.2004.11.010
Ksasy, M. S. M. Areed, F. Saraya, S. and khalik, M. A. “Optimal reactor length of an auto-thermal ammonia synthesis reactor”, International Journal of Electrical & Computer Sciences IJECS-IJENS, Vol. 10, No. 3, pp. 6-15, 2010.
Yusup, S. Zabiri, H. Yusoef, N. and Yew, Y. CH. “Modeling and Optimization of Ammonia Reactor using Shooting Methods”, Proceedings of the 5th WSEAS Int. Conf. on DATA NETWORKS, COMMUNICATIONS & COMPUTERS, Bucharest, Romania, October 16-17, 2006.
Dashti, A. Khorsand, K. Marvast,M. A. and Kakavand, M. “Modeling and Simulation of ammonia synthesis Reactor”, Petroleum &Coal, Vol. 48, No. 2, pp. 15-23, 2006.
Nikola, N. Mina, J., and Menka, P.“Enhanced ammonia synthesis in multifunctional reactor within situ adsorption”, Chemical Engineering Research and Design, Vol. 89, No. 4, pp. 398-404, 2011. DOI: https://doi.org/10.1016/j.cherd.2010.08.011
Abashar, M. E. E. “application ofheat interchange systems to enhance the performance of ammoniareactors”, Chemical EngineeringJournal, Vol. 78, No. 1, pp. 69-79, 2000. DOI: https://doi.org/10.1016/S1385-8947(99)00175-8
Singh. Ch. P. P. and Saraf, D. N.“Simulation of Ammonia Synthesis Reactors”, Industrial and Engineering Chemistry Process Design and Development, Vol. 18, No. 3, pp. 364-370, 1979. DOI: https://doi.org/10.1021/i260071a002
Elnashaie, S. S. Abashar, M. E. and Al-Ubaid, A. S. “Simulation and Optimization of an Industrial Ammonia Reactor”, Industrial andEngineering Chemistry Research, Vol. 27, No. 11, pp. 2015-2022, 1988. DOI: https://doi.org/10.1021/ie00083a010
Fukushima, M. “A successive quadratic programming algorithm with global and superlinear convergence properties”, Mathematical Programming, Vol 35, No. 3, pp. 253-264, 1986. DOI: https://doi.org/10.1007/BF01580879
Jarullah, A. T. Mujtaba, I. M. and Wood A. S. “Kinetic model development and simulation of simultaneous hydrodenitrogenation and hydrodemetallization of crude oil in trickle bed reactor”, Fuel, Vol.90, No. 6, pp. 2165-2181, 2011. DOI: https://doi.org/10.1016/j.fuel.2011.01.025
Edgar, T. F. and Himmelblau, D. M.“Optimization of Chemical Processes”, McGraw-Hill Science, pp. 534-539, 1989.
Upreti, S. R. and Deb, K. “Optimal design of an ammonia synthesis reactor using genetic algorithms”, Computers and Chemical Engineering, Vol. 21, No. 1, pp. 87- 92, 1997. DOI: https://doi.org/10.1016/0098-1354(95)00251-0
Jarullah, A. T. Mujtaba, I. M. and Wood A. S. “Whole Crude Oil Hydrotreating from Small Scale Laboratory Pilot Plant to Large Scale Trickle-Bed Reactor for Analysis of Operational Issues through Modelling”, Energy &Fuels, Vol. 26, No. 1, pp. 629-641, 2012. DOI: https://doi.org/10.1021/ef201406r
Babu, B. V. Angira, R. and Nilekar, A. “Optimal Design of an Auto- Thermal Ammonia Synthesis Reactor Using DifferentialEvolution”, Proceedings of the eighth World Multi-Conference on Systemics, Cybernetics and Informatics (SCI-2004), Orlando, Florida, USA, July 18-21, 2004.
