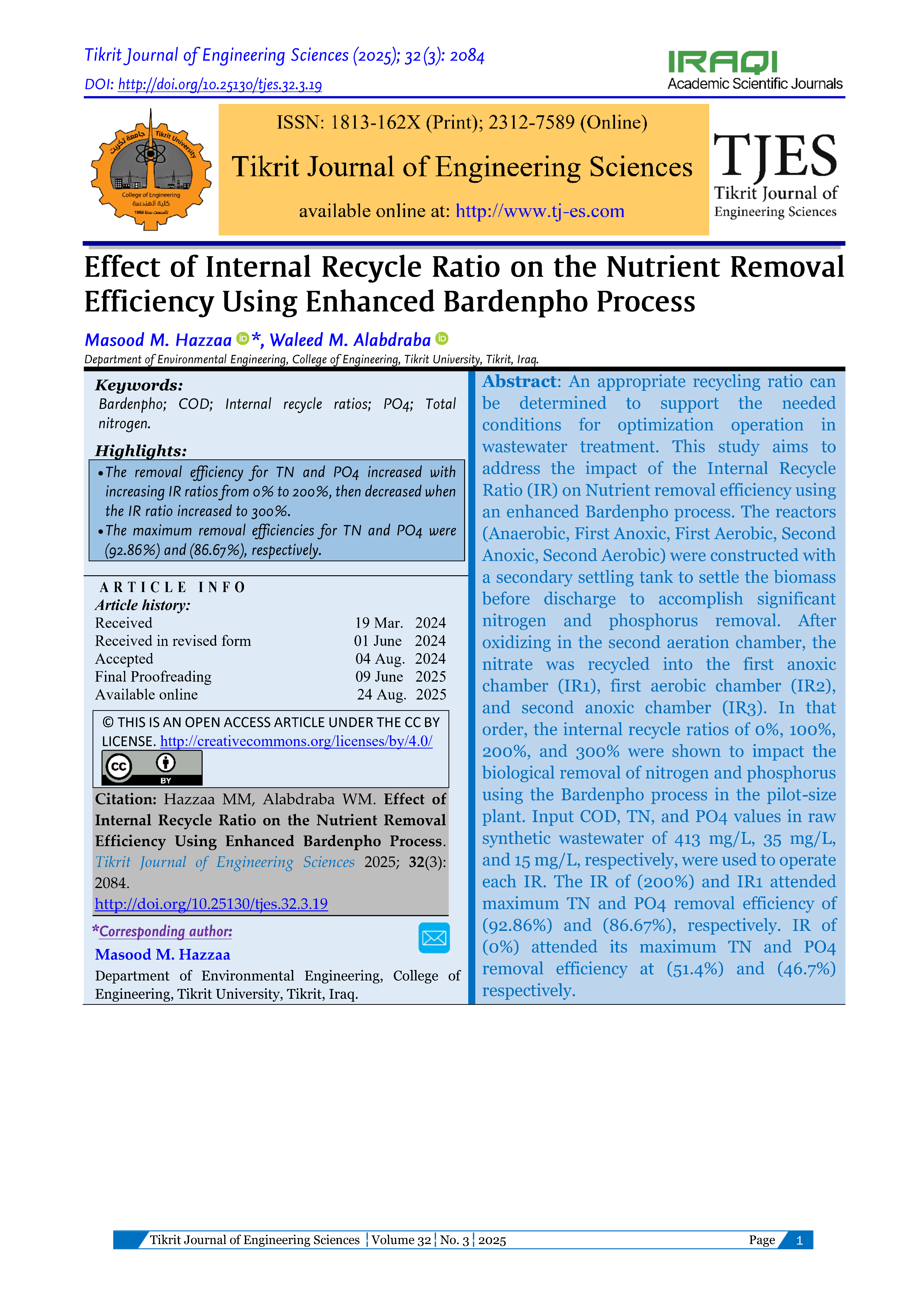

Effect of Internal Recycle Ratio on the Nutrient Removal Efficiency Using Enhanced Bardenpho Process
Article Sidebar
Main Article Content
Abstract
An appropriate recycling ratio can be determined to support the needed conditions for optimization operation in wastewater treatment. This study aims to address the impact of the Internal Recycle Ratio (IR) on Nutrient removal efficiency using an enhanced Bardenpho process. The reactors (Anaerobic, First Anoxic, First Aerobic, Second Anoxic, Second Aerobic) were constructed with a secondary settling tank to settle the biomass before discharge to accomplish significant nitrogen and phosphorus removal. After oxidizing in the second aeration chamber, the nitrate was recycled into the first anoxic chamber (IR1), first aerobic chamber (IR2), and second anoxic chamber (IR3). In that order, the internal recycle ratios of 0%, 100%, 200%, and 300% were shown to impact the biological removal of nitrogen and phosphorus using the Bardenpho process in the pilot-size plant. Input COD, TN, and PO4 values in raw synthetic wastewater of 413 mg/L, 35 mg/L, and 15 mg/L, respectively, were used to operate each IR. The IR of (200%) and IR1 attended maximum TN and PO4 removal efficiency of (92.86%) and (86.67%), respectively. IR of (0%) attended its maximum TN and PO4 removal efficiency at (51.4%) and (46.7%) respectively.
Metrics
Article Details
This work is licensed under a Creative Commons Attribution 4.0 International License.
THIS IS AN OPEN ACCESS ARTICLE UNDER THE CC BY LICENSE http://creativecommons.org/licenses/by/4.0/
Plaudit
References
Daigger G, Grady CPL, Love NG, Filipe CDM. Biological Wastewater Treatment. 3rd ed. Boca Raton; CRC Press; 2011:1022.
Salama Y, Chennaoui M, Mountadar M, Rihani M, Assobhei O. Influence of Support Media on COD and BOD Removal from Domestic Wastewater Using Biological Treatment in Batch Mode. Desalination and Water Treatment 2015; 54(1):37-43.
LaPara TM, Ghosh S. Population Dynamics of the Ammonia-Oxidizing Bacteria in a Full-Scale Municipal Wastewater Treatment Facility. Environmental Engineering Science 2006; 23(2):309-319.
Pasereh F, Borghei SM, Hosseini SN, Javid AH. Removal of Nitrogen and Phosphorus Simultaneously from Sanitary Wastewater of Yasouj in Pilot-Scale in 5-Stage Bardenpho Process. Bulgarian Chemical Communications 2017; 49(J):320-329.
Manav Demir N, Yildirim A, Coskun T, Balcik Canbolat C, Debik E. Carbon and Nutrient Removal from Domestic Wastewaters in a Modified 5-Stage Bardenpho Process via Fuzzy Modeling Approach. Environment Protection Engineering 2019; 45(1): 5-16.
Ashrafi E, Zeinabad AM, Borghei SM, Torresi E, Sierra JM. Optimising Nutrient Removal of a Hybrid Five-Stage Bardenpho and Moving Bed Biofilm Reactor Process Using Response Surface Methodology. Journal of Environmental Chemical Engineering 2019; 7(1):102861.
Almomani F, Bohsale RR. Optimizing Nutrient Removal of Moving Bed Biofilm Reactor Process Using Response Surface Methodology. Bioresource Technology 2020; 305: 123059.
Al-Khayyat HHI. The Effect of Using Anaerobic Selective Ponds on the Efficiency of Continuous Flow Activated Sludge Systems. M.Sc. Thesis. Mosul University; Mosul, Iraq: 2010.
Al-Taie MSG. Comparison of the Performance of Moderate-Temperature and Thermophilic Activated Sludge Systems in Treating Dairy Waste Water. M.Sc. Thesis. Mosul University; Mosul, Iraq: 2009.
Viessman W, Hammer MJ. Water Supply and Pollution Control. 4th ed. New York: Harper and Row Publisher Inc.; 1998.
Eckenfelder Jr. W. Industrial Water Pollution Control. 3rd ed. Singapore: McGraw Hill International; 2000.
Falahati-Marvast H, Karimi-Jashni A. A New Modified Anoxic-Anaerobic-Membrane Bioreactor for Treatment of Real Wastewater with a Low Carbon/Nutrient Ratio and High Nitrate. Journal of Water Process Engineering 2020; 33:101054.
Rabbani D, Rashidipour F, Nasseri S, Mousavi SGA, Shaterian M. High-Efficiency Removal of Phosphorous from Filtered Activated Sludge Effluent Using Electrochemical Process. Journal of Cleaner Production 2020; 263:121444.
Nhut HT, Hung NTQ, Sac TC, Bang NHK, Tri TQ, Hiep NT, Ky NM. Removal of Nutrients and Organic Pollutants from Domestic Wastewater Treatment by Sponge-Based Moving Bed Biofilm Reactor. Environmental Engineering Research 2020; 25(5):652-658.
Rezaa M, Cuenca MA. Simultaneous Biological Removal of Nitrogen and Phosphorus in a Vertical Bioreactor. Journal of Environmental Chemical Engineering 2016; 4:130-136.
Lei X, Jia Y, Chen Y, Hu Y. Simultaneous Nitrification and Denitrification Without Nitrite Accumulation by a Novel Isolated Ochrobactrum Anthropic LJ81. Bioresource Technology 2019; 272:442-450.
Li J, He C, Tian T, Liu Z, Gu Z, Zhang G, Wang W. UASB-Modified Bardenpho Process for Enhancing Bio-Treatment Efficiency of Leachate from a Municipal Solid Waste Incineration Plant. Waste Management 2020; 102:97-105.
Aminu N, Kutty SRM, Isa MH, Salihi IU. Influence of Internal and External Recycle on Nitrogen Removal in Compact Bioreactor. Engineering and Technology 2015; 11(12):1320-1328.
Al-Zuhairy MS, Bahaa Z, Mizeel WS. Biological Phosphorus and Nitrogen Removal from Wastewater Using Moving Bed Biofilm Reactor (MBBR). Engineering and Technology Journal 2015; 33(7): 1731-1739.
Xu S, Wu D, Hu Z. Impact of Hydraulic Retention Time on Organic and Nutrient Removal in a Membrane Coupled Sequencing Batch Reactor. Water Research 2014; 55:12-20.
Toet S, Logtestijn RSPV, Kampf R, Schreijer M, Verhoeven JTA. The Effect of Hydraulic Retention Time on the Removal of Pollutants from Sewage Treatment Plant Effluent in a Surface-Flow Wetland System. Wetlands 2005; 25(2):375-391.
Mannina G, Ekama GA, Capodici M, Cosenza A, Trapani DD, Ødegaard H. Moving Bed Membrane Bioreactors for Carbon and Nutrient Removal: The Effect of C/N Variation. Biochemical Engineering Journal 2017; 125:31-40.
Mannina G, Capodici M, Cosenza A, Trapani DD. Carbon and Nutrient Biological Removal in a University of Cape Town Membrane Bioreactor: Analysis of a Pilot Plant Operated Under Two Different C/N Ratios. Chemical Engineering Journal 2016; 296:289-299.
Bassin JP, Dias IN, Cao SMS, Senra E, Laranjeira Y, Dezotti M. Effect of Increasing Organic Loading Rates on the Performance of Moving-Bed Biofilm Reactors Filled with Different Support Media: Assessing the Activity of Suspended and Attached Biomass Fractions. Process Safety and Environmental Protection 2016; 100:131-141.
Leyva-Díaz JC, Munío MM, González-López J, Poyatos JM. Anaerobic/Anoxic/Oxic Configuration in Hybrid Moving Bed Biofilm Reactor-Membrane Bioreactor for Nutrient Removal from Municipal Wastewater. Ecological Engineering 2016; 91:449-458.
Al-Zuhairy MS, Bahaa Z, Mizeel WS. Biological Phosphorus and Nitrogen Removal from Wastewater Using Moving Bed Biofilm Reactor (MBBR). Engineering and Technology Journal 2015; 33(7A):1731-1739.
Aljumaily MM, Ali NS, Mahdi AE, Alayan HM, Al Omar M, Hameed MM, Mohammed ZB. Modification of Poly (Vinylidene Fluoride-Co-Hexafluoropropylene) Membranes with DES-Functionalized Carbon Nanospheres for Removal of Methyl Orange by Membrane Distillation. Water 2022; 14(9):1396.
Aldoury MMI, Hammood MT. Assessment of Many WQI Models and Development of New WQI Model. Water Supply 2024; 24(4):1224-1242.
Al-Hashimi MAI, Abbas AH. Sequential Anaerobic/Aerobic Treatment of Pharmaceutical Wastewater. Tikrit Journal of Engineering Sciences 2007; 14(2):1-31.
Salim AA, Mohammed ZB, Fattah MY. Treatment the Leachate of a Landfill Using Physical and Biological Processes. AIP Conference Proceedings 2024; 2864(1): 020009.
